VLX 500 Single & Double Hung Window

VLX 500 Single & Double Hung Window in Jupiter, FL | Sightline Windows & Doors Jupiter

The VLX 500 Single & Double Hung Window is the aluminum hung window Jupiter homeowners choose when they want classic vertical operation without giving up modern performance. Its tilt-in sashes flip inward for safe, easy cleaning from inside the house, no ladder required. At Sightline Windows & Doors Jupiter, we’re an authorized ViewLux installation partner, which means your windows arrive factory-specified and we install them to the exact standards that keep your warranty intact. Whether you’re replacing original 1980s aluminum windows in a Tequesta Country Club home or building new near the Loxahatchee River, this series balances clean sightlines with the durability our coastal climate demands. Call (772) 362-5402 to schedule your free on-site measurement and written estimate.

Call (772) 362-5402

Product Overview - VLX 500 Single & Double Hung Window

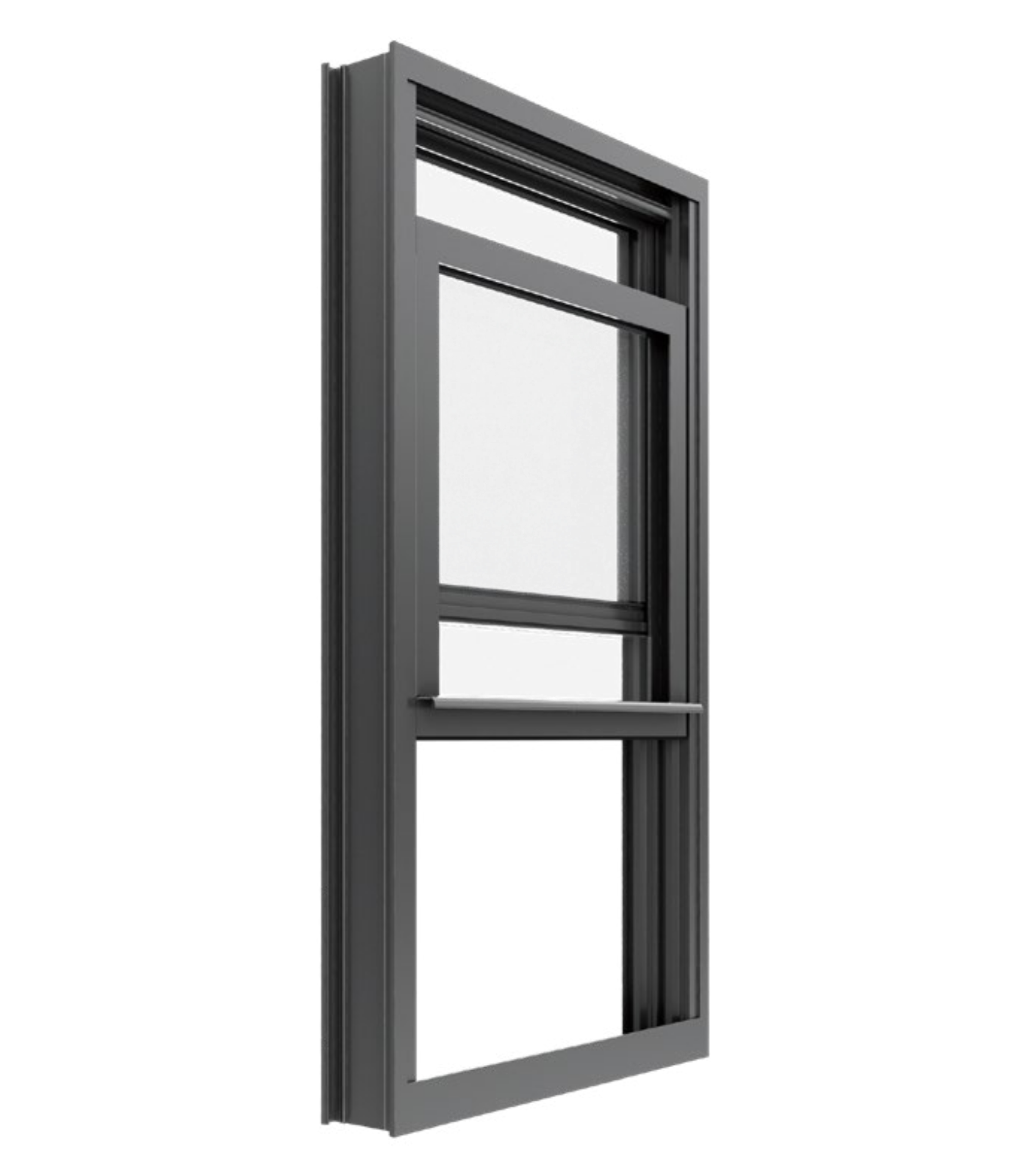

The VLX 500 is a classic vertical-glide aluminum hung window with tilt-in sashes for easy cleaning. Both sashes slide up and down in independent tracks, and on the double-hung configuration, either sash can tilt inward on concealed pivot pins. That matters in Jupiter, where two-story homes are common and exterior ladder work in summer heat is miserable at best.

Architecturally, the VLX 500 fits where you want a traditional divided-light look or a minimal contemporary frame. The 2.36-inch profile width gives you more glass area than bulkier vinyl alternatives, so rooms feel brighter. The 0.079-inch wall thickness is substantial enough for rigidity over wide openings without the overbuilt heaviness of commercial storefront systems.

Buyers choose this series for three reasons. First, aluminum doesn’t swell, warp, or absorb moisture the way wood does in our humidity. Second, the thermal break separates interior and exterior frame surfaces, so you get modern energy performance in a material that used to be notorious for heat transfer. Third, the tilt mechanism is genuinely robust. We’ve installed these in Jupiter homes where owners clean their own windows monthly, and the pivot hardware still feels tight after years of use.

ViewLux manufactures the VLX 500 to consistent tolerances. Our job as your authorized installer is to make sure the frame sits plumb in the opening so those tolerances actually matter.

Technical Specifications

Before

After

Performance Features

Thermal Efficiency

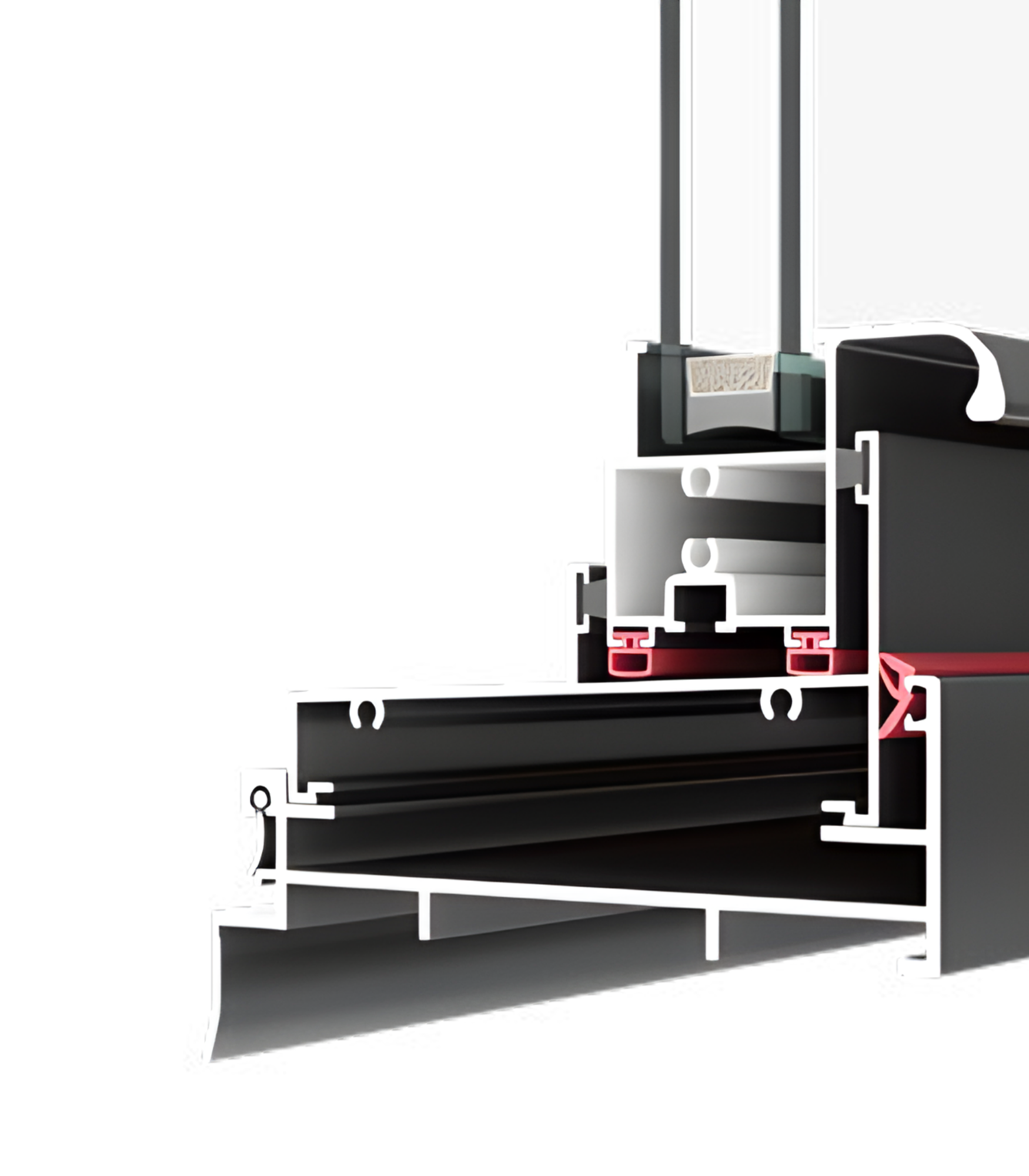

The VLX 500 uses a true thermal break that interrupts heat flow through the aluminum frame. Combined with Low-E glass, this achieves NFRC-rated energy performance that meets or exceeds Florida code requirements. In Jupiter, where air conditioning runs eight months a year, that thermal break pays for itself in measurable load reduction on your HVAC system.

Acoustic Performance

Laminated glass and dual-pane construction with proper air space dampen exterior noise. We’ve measured meaningful reduction in homes near Indiantown Road and U.S. 1, where traffic and rail noise penetrate older single-pane windows. The frame’s mass and gasket compression seal contribute as much as the glass itself.

Airtightness & Weather Seal

Multiple bulb seals and interlocking sash rails create positive closure at every meeting point. AAMA testing protocols verify that infiltration stays below specified thresholds. In practice, that means no winter drafts and no dust infiltration during Jupiter’s dry spring months when pollen counts spike.

Waterproofing

Sill design includes internal drainage channels and weep paths that evacuate wind-driven rain. The AAMA 812 low-expansion foam sealant we apply at perimeter joints creates a secondary moisture barrier. During our final water test, we spray the exterior to verify no penetration at corners or meeting rails.

Wind Resistance

The VLX 500 is wind-load rated for local climate requirements, including the pressure cycling and impact debris standards that apply in Palm Beach County. With laminated glass specified, the system meets impact-resistant criteria for homes in designated wind-borne debris regions.

Security & Hardware

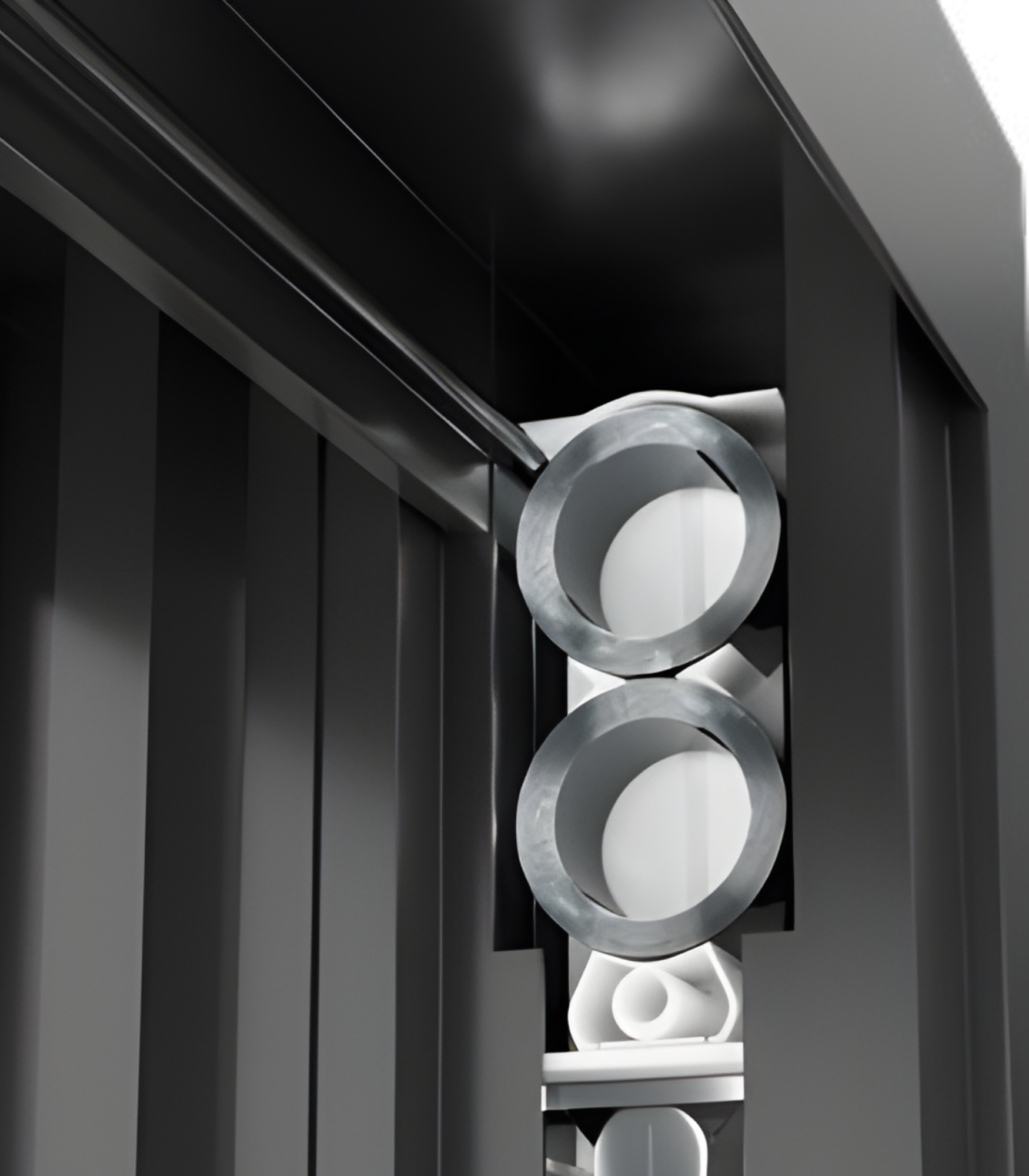

Concealed tilt latches prevent forced entry at the sash rails. Locking mechanisms engage at multiple points rather than a single catch. The 0.079-inch wall thickness resists frame flex that could compromise lock engagement. We verify full throw and positive latch on every window before we leave your Jupiter home.

Color & Glass Options

Six finishes let the VLX 500 adapt to virtually any Jupiter architectural context. Premium Black and Anodized Silver read modern and clean, well-suited to the contemporary builds going up near Jupiter Inlet Colony. Pure White is the safe choice for traditional Florida ranch homes and any property where you want the windows to disappear into the trim. Bronze and Champagne offer warmth that complements Mediterranean and Tuscan-influenced exteriors common in Abacoa and throughout northern Palm Beach County. Teak Wood finish gives you the appearance of natural grain without the maintenance liability of actual wood in our climate.

Glass selection should match how you use each room. Clear glass maximizes visible light transmission. Frosted works for bathrooms and side elevations where privacy matters more than view. Low-E coating is our default recommendation for east and west exposures in Jupiter, where morning and afternoon sun load is severe. Tempered glass is code-required for windows near doors, at low heights, and in wet areas. Laminated glass provides both impact resistance and acoustic damping, the right choice for first-floor windows and any home within a mile of the Florida Turnpike or I-95.

Screen choice is practical. Half-screen covers the operable sash only, leaving sightlines cleaner on fixed upper sashes. Full screen is better if you open both sashes regularly for cross-ventilation during Jupiter’s cooler winter evenings.

Installation by Sightline Windows & Doors Jupiter in Jupiter

We install every VLX 500 to AAMA 2400/2410 standards because anything less voids the ViewLux manufacturer warranty. That matters. We’ve been called to Jupiter homes where handymen or unqualified contractors left gaps, failed to flash properly, or shimmed frames out of square. The windows leaked, the sashes bound, and ViewLux correctly denied warranty claims due to improper installation.

Our process starts with a pre-install inspection. We measure each opening to the sixteenth, check for out-of-plumb framing, and identify any rot or water damage in existing subsills. In Jupiter, we regularly find compromised wood beneath original aluminum windows, especially in homes built before 1995 with flat sills that pooled water. We repair or replace damaged substrate before the new window goes in.

Setting the frame is where precision matters. We level, plumb, and square every unit with composite shims, never wood that can rot. Fasteners go through pre-drilled frame holes at specified intervals. We don’t over-torque, which can distort the thermal break channel.

Perimeter sealing follows AAMA 812 protocol: low-expansion foam sealant fills the gap between frame and rough opening, with backer rod and sealant at the interior and exterior faces. This three-layer approach handles the differential movement between aluminum and wood framing that Jupiter’s temperature swings produce.

Final steps: we test operation of every sash, verify tilt latch function, run a water spray test on a sampling of units, and clean the work area completely. You get a walkthrough showing how to remove and replace screens, how to tilt the sashes for cleaning, and what to watch for during the first year.

Jupiter’s building code requires permits for window replacement when the opening size changes or when impact-rated products are required. We pull those permits, schedule inspections, and provide the documentation your insurance company may request. Our installations pass. Every time.

Frequently Asked Questions - VLX 500 Single & Double Hung Window

What is the lead time for the VLX 500 Single & Double Hung Window?

Lead time typically runs 4 to 6 weeks from final measurement and deposit, depending on finish and glass selection. Premium Black and Pure White in standard sizes move fastest. Custom sizes and Teak Wood finish may extend toward the longer end. Call (772) 362-5402 to check current production schedules for your specific configuration.

Does the VLX 500 qualify for energy tax credits?

The VLX 500 with Low-E glass and thermal break construction meets the performance thresholds for federal energy efficiency credits when installed in a primary residence. We provide NFRC labels and product certification documents with every installation for your tax preparer. For current credit amounts and eligibility rules, consult IRS guidance or your accountant.

What warranty comes with the Single & Double Hung Window?

ViewLux provides a limited lifetime warranty on the frame and sash, with 20-year coverage on insulated glass units against seal failure. Hardware carries a 10-year warranty. These warranties transfer to subsequent owners with proper documentation. Coverage requires installation by an authorized partner like Sightline Windows & Doors Jupiter using AAMA-compliant methods.

Can I customize the size?

Yes. The VLX 500 is available in custom widths and heights in 1/8-inch increments within the series’ maximum and minimum frame dimensions. We measure on-site, confirm your rough opening dimensions, and factory-order to fit. Custom sizing does not extend lead time significantly for standard finishes.

How do I maintain aluminum frames?

Wash frames twice yearly with mild soap and water, rinse thoroughly, and dry with a soft cloth. Avoid abrasive cleaners or solvents that can damage the anodized or painted finish. Lubricate the tilt latches and balance mechanisms annually with a silicone-based spray. The tilt-in sashes make exterior glass cleaning safe and simple from inside your Jupiter home.

Get a Quote - VLX 500 Single & Double Hung Window in Jupiter

Ready to see how the VLX 500 fits your Jupiter home? We’ll bring full-size finish samples, glass samples, and a written quote with line-item pricing. No deposit required to get your numbers. Call (772) 362-5402 or stop by to schedule your free on-site measurement. We’ll measure every opening, check your existing conditions, and give you a project timeline you can plan around.

Written by the team at Sightline Windows & Doors Jupiter, serving Jupiter since 2018.
